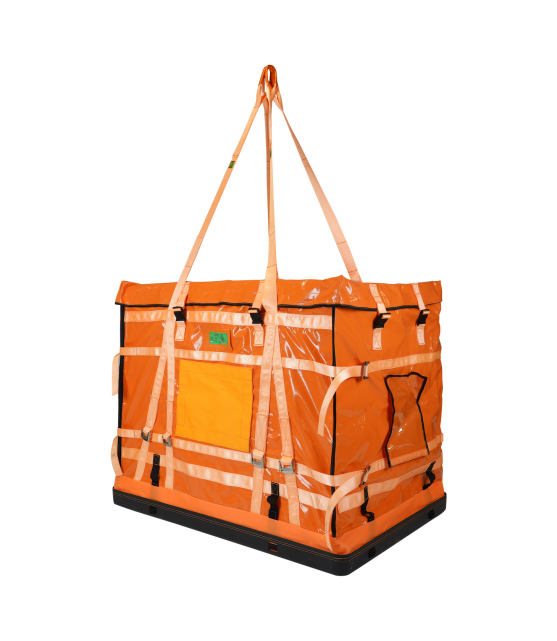

Lifting Bag WLL 1.000kg

This model was designed and constructed with heavy involvement from the offshore windmill
industry. The main purpose of this giant bag is to fit an entire EU-pallet inside and hereby lowering the
amount of lifts needed. The bag is able to carry content weighing up to 1 ton.

■ Dimensions (open): 130 x 90 x 100 cm (L x W x H)
■ Dimensions (closed): 130 x 90 x 100 cm (L x W x H)
■ Lifting height: 200 cm
■ Material (main): 0,75 mm Heavy tarpaulin
■ Material (bottom): Acrylonitrile Butadiene Styrene (ABS) plastic
■ Material (webbing): 50 mm polyester
■ Pallet attachment is achieved by passing polyamide ribbons through stainless steel buckles and
under the bag and pallet.
■ The bag is robust and water-resistant because it is composed of heavy tarpaulin.
■ Four lifting straps, composed of premium polyamide webbing, are utilized by 4467.
■ The bag’s walls are strengthened and tightened with the use of stainless steel buckles.
■ Velcro and 50mm plastic buckles around the bag’s sides secure the lid.
■ With the ability to open, fold, and function as a ”gate,” the front of the bag facilitates filling and
allows a full pallet to be placed inside with a forklift.
■ To roll the cloth, a plastic tube is inserted into the top of the ”gate”
■ Each side of the front has a zipper that opens.
■ On the front of the bag, there is a detachable velcro patch that makes it simple to print your logo.
■ Each end of the bag has a clear plastic pocket for A4 markings or documentation. The pockets are
easily removable and fastened with velcro
■ The bottom cover is composed of Acrylonitrile Butadiene Styrene (ABS) plastic, which helps
distribute weight and extends the bag’s lifespan.
■ The walls of the bag are lined with hard plastic plates.
■ Inside the bag, a 20 mm PVC plate is positioned to provide protection and even out the weight.
■ To reduce the amount of space the bag takes up when being transported or stored, the walls can
be removed and tucked into the bottom of the bag.
■ If necessary, the bottom cover can be removed and replaced.

This model complies to the relevant parts of the following standards:
■ EN 1492-1
■ ISO 21898
